'The Ultimate' Wiring for Les Paul® // 'JP' Mod

Super Easy, Solder-less Install
All Obsidian® Pro-Wired™ Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.

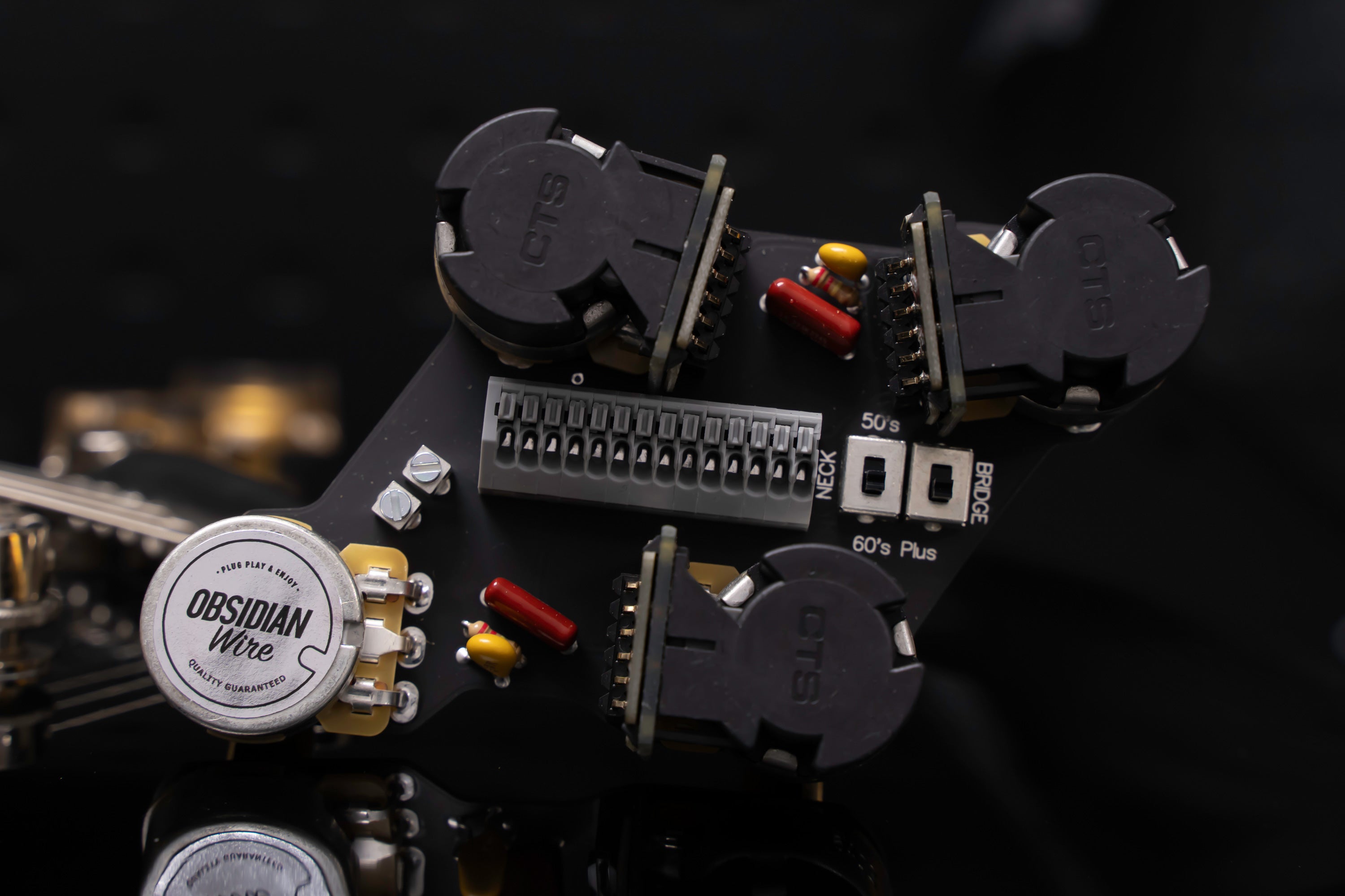

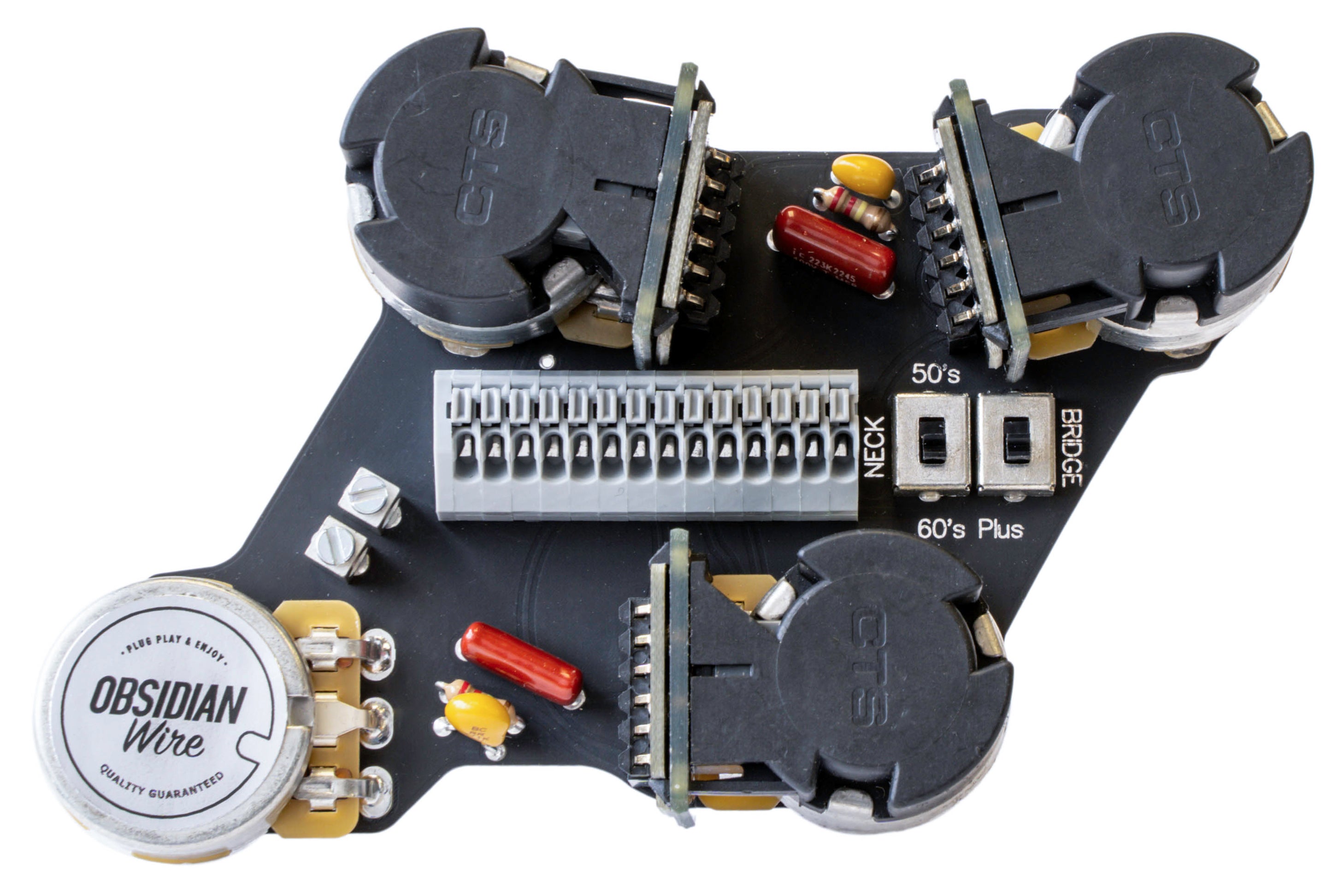

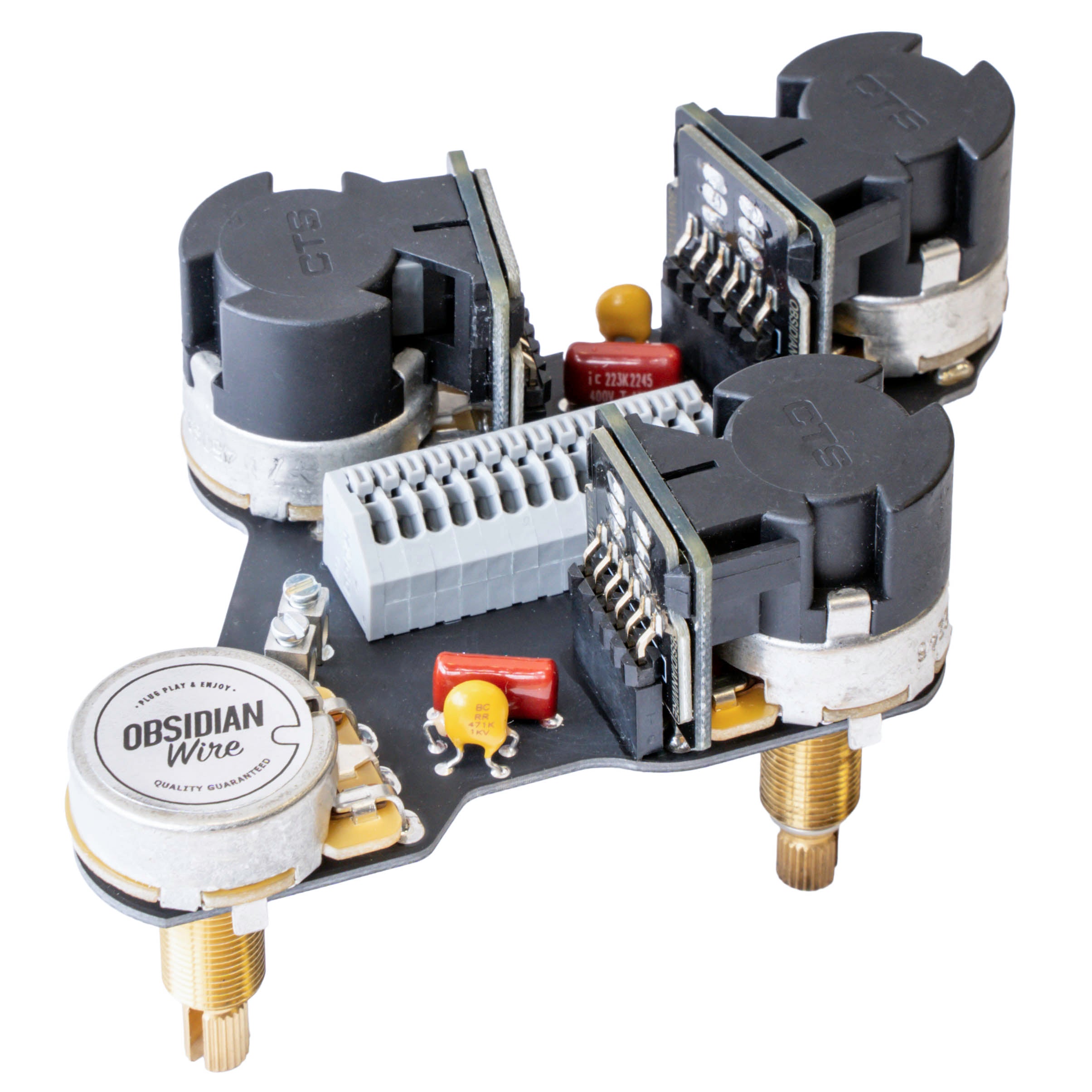

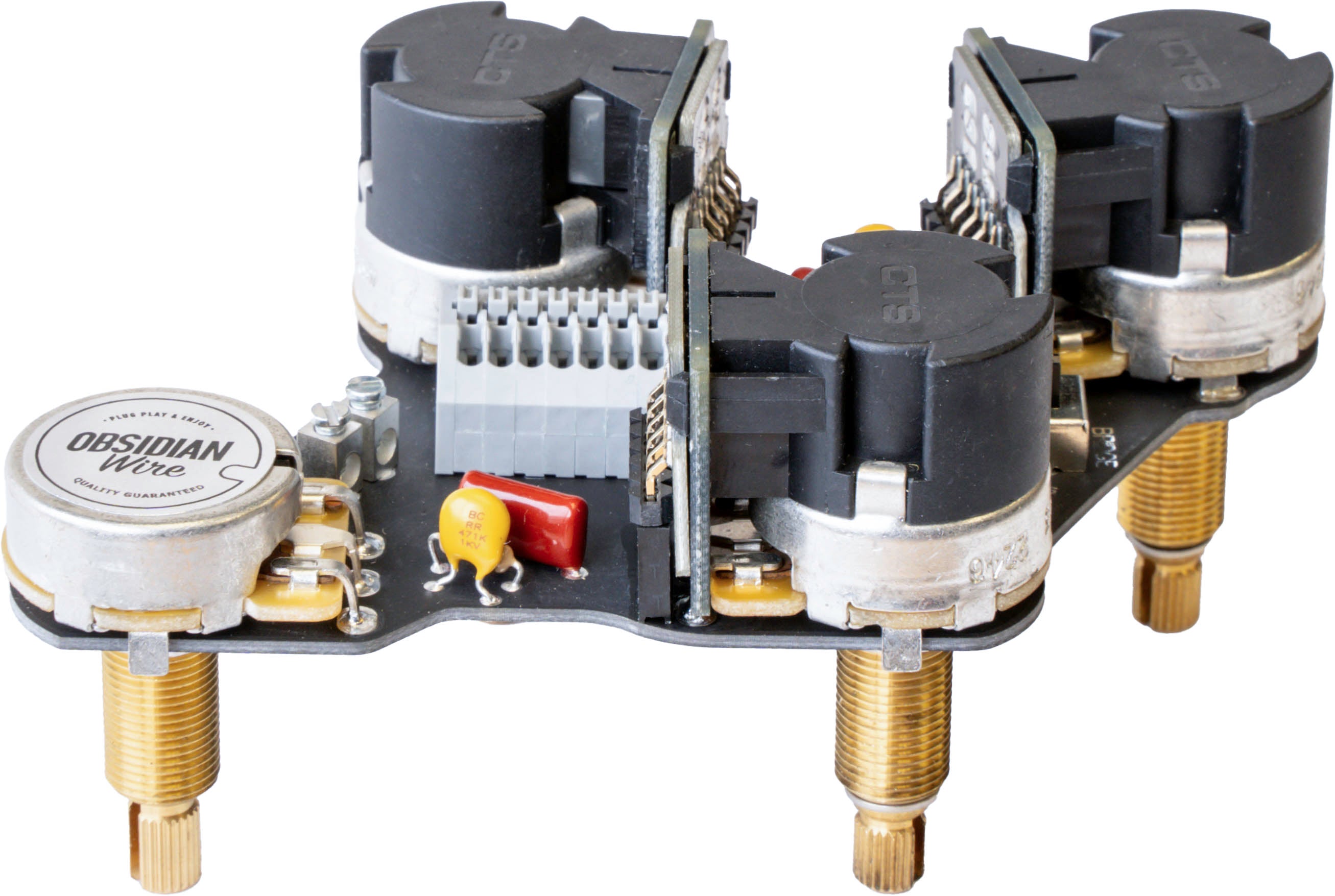

'The Ultimate' Wiring for Les Paul® // 'JP' Mod

'The Ultimate' wiring for Les Paul® is a full featured and comprehensive wiring upgrade, designed to give you all of the best Les Paul sounds in one setup.

Based on the wiring used by Jimmy Page, but even more versatile.

The extra sounds are activated using three push / pull pots, so no extra mods are required to the body of your guitar.

• REQUIRES FOUR CONDUCTOR PICKUPS

FEATURES:

'VINTAGE 50'S' MODE

Allow for some treble roll off when you roll back your volume control for an easy bridge between perfect warm cleans and searing leads.

The 'Vintage 50's' wiring mod is a super popular Les Paul wiring upgrade that reverts your stock LP wiring back to the glory days, and the beginning of the Vintage Les Paul. This is our most popular and personal favorite Les Paul wiring.

'60'S PLUS' MODE

Prevent treble loss when you roll back the volume for greater clarity and cut through at reduced volume levels.

The Obsidian® '60's Plus' wiring is made for clarity and cut through with an improved circuit that will help you retain treble at all volume levels.

For a full run down on different Les Paul wiring types, check out our full guide - Click Here

DUAL SC (COIL SPLIT)

Turn your humbuckers in to single coils, and back again
To add true versatility to your guitar we build in Obsidian® Dual SC, allowing you to split your humbuckers in to single-coils for lower output, more dynamic tones.

// Controlled by Neck Volume Control

'SERIES' MODE SWITCHING

Play your neck and bridge pickups in Series for a fuller output sound with a boosted midrange.

// Controlled by Neck Tone Control

NOTE: This also mutes the bridge/lead pickup when played alone

PHASE SWITCHING

Play your neck and bridge pickups out of phase for those classic Les Paul sound made famous by Brian May and Jimmy Page.

// Controlled by the Bridge Tone Control

For install help and other resources please go to our Info Hub.
