ObsidianWire®

ST Custom 7 G2

Custom '7 WAY' for Strat® Gen2 // Gilmour Mod

Regular price
£94.00
Regular price
Sale price
£94.00

Super Easy, Solder-less Install
Key Features:

  • New 'Gen2' Model
  • Gilmour Mod  / '7-Way' Switching
  • Improved Tone Control Layout
  • Switchable Volume Control Voicings
  • Fits Fender® Strat®
  • Fits Squier® Strat® with Adjustments


  • Hurry, only 14 items left in stock!

FAST SHIPPING

5 YEAR WARRANTY

ObsidianWire solderless install logo

Super Easy, Solder-less Install
All Obsidian® Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.



Custom 7 WAY Wiring for Strat®// Gilmour Mod

The new Obsidian® Custom 7 Way wiring harness for Stratocaster® has had a complete over hall, to make the super versatile 7 Way wiring mod even better. The new upgraded harness retains the '7-way' switching inspired by David Gilmour, but improves the tone control layout, smooths out the tone and volume control responses, and gives you two volume control 'voices' so you can get your guitar setup exactly how you like it.

7-WAY STRAT SWITCH // GILMOUR MOD

The sweetest bell like Strat® tone. Play your neck and bridge pickups together for the sweetest bell like tones, or even all three pickups together. The switch is built in to your tone control by use of a push/pull pot, so no extra mods are required to your guitar.

'VOICE' SWITCHING

Shape your volume control to your playing style. Match the function of your volume control to your playing style, with a 'Clear' mode and a 'Balanced' mode.

'CLEAR' MODE - Crystal clear tone at any volume level
'BALANCED' MODE - Roll off some highs with the volume control for a smooth transition between clean and crunch

OBSIDIAN® LAYOUT

Tone & volume controls that make sense. We have assigned 'Tone control 1' to the neck and middle pickups, leaving 'Tone control 2' as a dedicated bridge pickup tone control, for balancing the brighter treble in switch positions 1 & 2.

Controls:

Tone Control 1: Middle & Neck Pickup (Works in positions 2 - 5)
Tone Control 2: Bridge Pickup (Works in positions 1 - 2)

GILMOUR SWITCH FUNCTION

'7 WAY' GILMOUR SWITCH ON (UP)

'7 WAY' GILMOUR SWITCH OFF (DOWN)

Bridge + Neck Bridge
Bridge & Middle + Neck Bridge & Middle
Middle + Neck Middle
Neck & Middle  Neck & Middle
Neck Neck

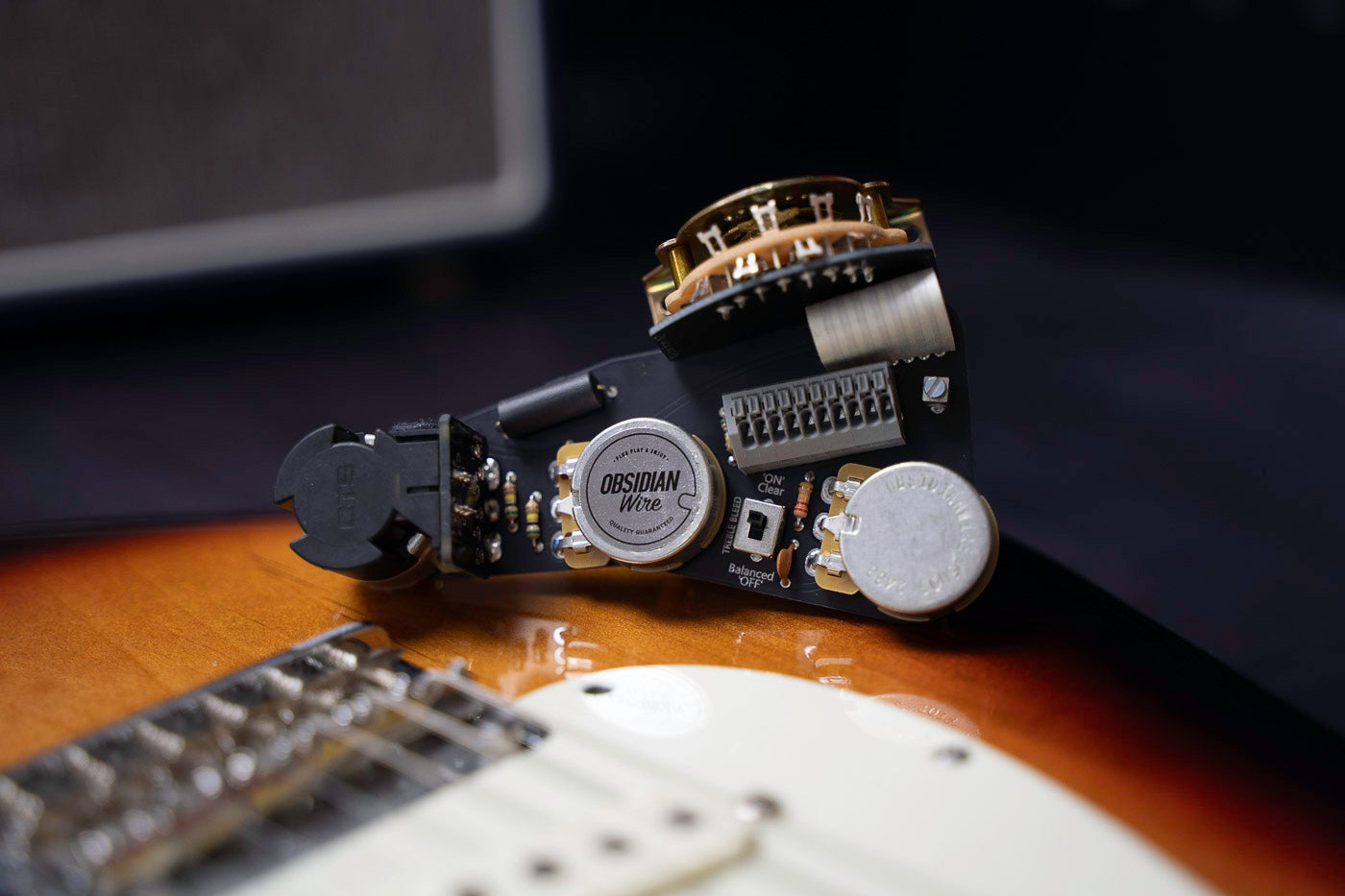

The ObsidianWire 7 Way // Gilmour Wiring Harness for Stratocaster Gen 2 Model with adjustable volume control voice
Custom &
The ObsidianWire 7 Way // Gilmour Wiring Harness for Stratocaster Gen 2 Model with adjustable volume control voice
The ObsidianWire 7 Way // Gilmour Wiring Harness for Stratocaster Gen 2 Model with adjustable volume control voice
Custom &

Gilmour Mod // 7-Way Wiring - for SSS Stratocaster®

The Custom '7 WAY' for Strat® Gen2 // Gilmour Mod

  • New 'Gen2' Model
  • Gilmour Mod  / '7-Way' Switching
  • Improved Tone Control Layout
  • Switchable Volume Control Voicings
  • Fits Fender® Strat®
  • Fits Squier® Strat® with Adjustments

Details

Description

ObsidianWire solderless install logo

Super Easy, Solder-less Install
All Obsidian® Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.



Custom 7 WAY Wiring for Strat®// Gilmour Mod

The new Obsidian® Custom 7 Way wiring harness for Stratocaster® has had a complete over hall, to make the super versatile 7 Way wiring mod even better. The new upgraded harness retains the '7-way' switching inspired by David Gilmour, but improves the tone control layout, smooths out the tone and volume control responses, and gives you two volume control 'voices' so you can get your guitar setup exactly how you like it.

7-WAY STRAT SWITCH // GILMOUR MOD

The sweetest bell like Strat® tone. Play your neck and bridge pickups together for the sweetest bell like tones, or even all three pickups together. The switch is built in to your tone control by use of a push/pull pot, so no extra mods are required to your guitar.

'VOICE' SWITCHING

Shape your volume control to your playing style. Match the function of your volume control to your playing style, with a 'Clear' mode and a 'Balanced' mode.

'CLEAR' MODE - Crystal clear tone at any volume level
'BALANCED' MODE - Roll off some highs with the volume control for a smooth transition between clean and crunch

OBSIDIAN® LAYOUT

Tone & volume controls that make sense. We have assigned 'Tone control 1' to the neck and middle pickups, leaving 'Tone control 2' as a dedicated bridge pickup tone control, for balancing the brighter treble in switch positions 1 & 2.

Controls:

Tone Control 1: Middle & Neck Pickup (Works in positions 2 - 5)
Tone Control 2: Bridge Pickup (Works in positions 1 - 2)

GILMOUR SWITCH FUNCTION

'7 WAY' GILMOUR SWITCH ON (UP)

'7 WAY' GILMOUR SWITCH OFF (DOWN)

Bridge + Neck Bridge
Bridge & Middle + Neck Bridge & Middle
Middle + Neck Middle
Neck & Middle  Neck & Middle
Neck Neck


Specs

BUILT IN HOUSE WITH

Potentiometers: ObsidianWire® Custom CTS 250k Pots(+/-10%) Split Shaft / 24 Spline

Capacitors: (150 Series Polyester Film 0.022uf)(+/-5%

Switch: Oak® 5 Way Selector Switch

Jack: Pro-Wired Switchcraft® J11 Mono // OR Pure Tone® Mono Multi-Contact 1/4 in

Compatibility

MADE TO FIT

Fender® Stratocaster®- Direct Fit // Right Hand Guitar Only

Squier® Stratocaster®- Widen Control holes to 10mm & replace knob

Always Check: Requires Minimum Cavity Depth Around Push Pull Pot 29.2mm / 1.15

Knobs:Requires US spec 24 spline knob

Pickups: Built for three single coil pickups

DOES NOT FIT

Left Handed Guitars // Any guitar not described above
