Frusciante Loaded Pickguard for Strat®

Regular price
£228.00
Regular price
Sale price
£228.00

Inspired by one of the worlds most famous 62' Strats, this is our take on the Frusciante loaded pickguard. Super Easy, Solder-less Install

  • Obsidian® Custom Blender Wiring
  • Tonerider® CLASSIC BLUES // OR
  • Obsidian® Custom Shop 'FIVE SIXTIES'
  • Fully Shielded 3 Ply Mint Green Pickguard
  • High Quality Obsidian® Knobs & Pickup Covers (Aged White on Mint Green like an Aged 60s guard)
  • Comprehensive Wiring & Pickup Upgrade

Custom Shop: Built to Order

Fast Build Time: Ships in 2-4 Business Days

Express Shipping Available: DHL Express

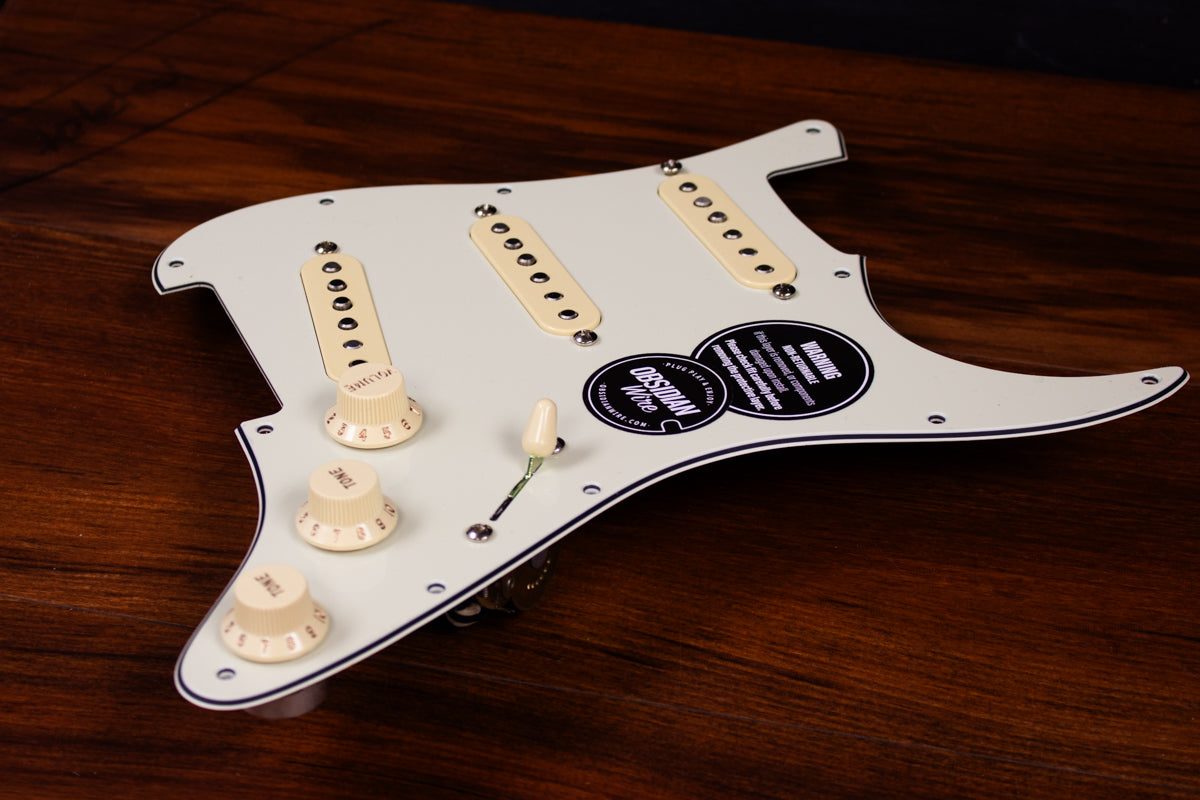

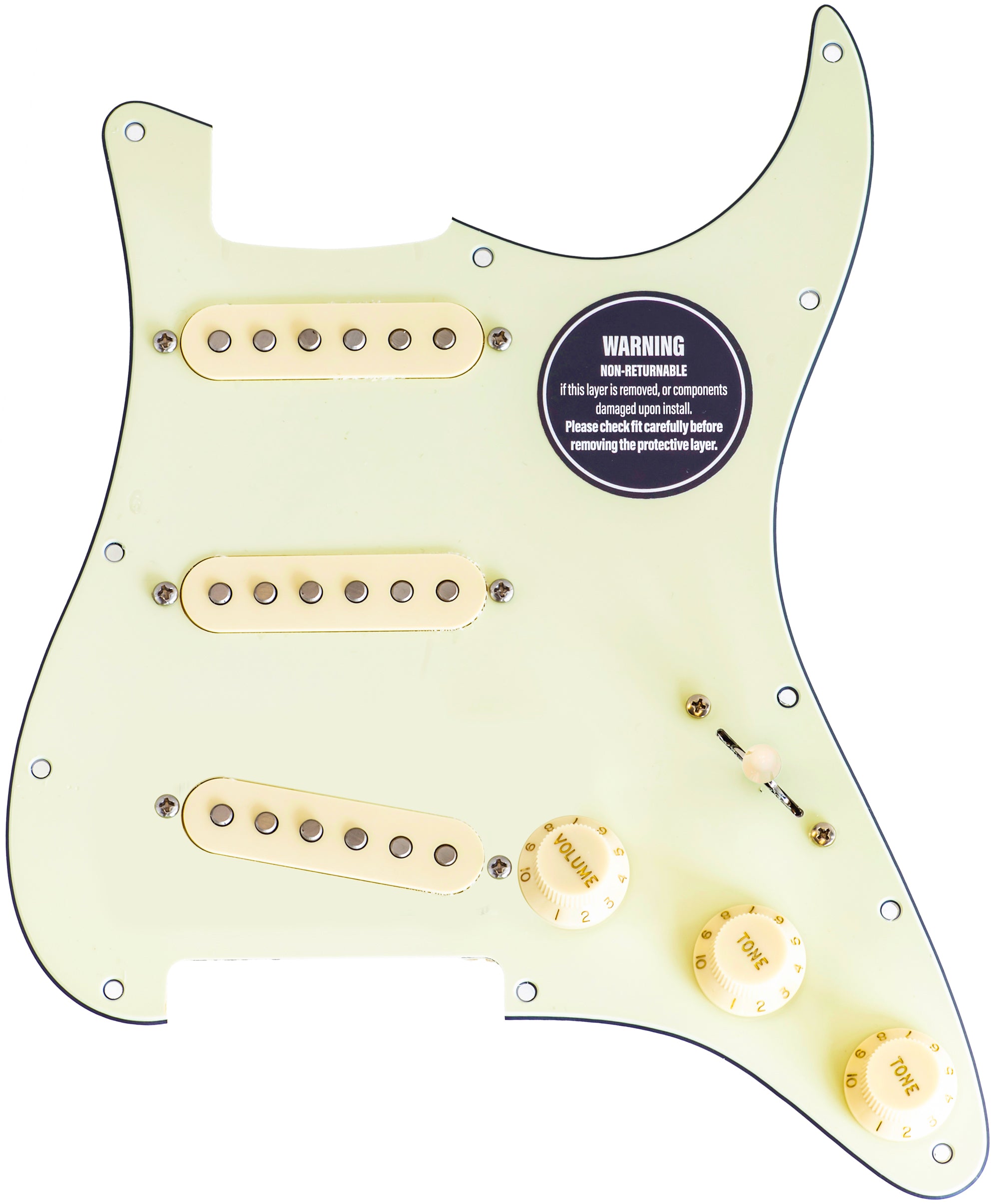

Frusciante style loaded Stratocaster pickguard with mint green pickguard and aged white pickup covers and kbobs
Frusciante Loaded Pickguard for Strat®
Frusciante Loaded Pickguard for Strat®
Frusciante Loaded Pickguard for Strat®
Frusciante Loaded Pickguard for Strat®

You Design It, We Build It...

Frusciante Loaded Pickguard for Strat®

Inspired by one of the worlds most famous 62' Strats, this is our take on the Frusciante loaded pickguard. Super Easy, Solder-less Install

  • Obsidian® Custom Blender Wiring
  • Tonerider® CLASSIC BLUES // OR
  • Obsidian® Custom Shop 'FIVE SIXTIES'
  • Fully Shielded 3 Ply Mint Green Pickguard
  • High Quality Obsidian® Knobs & Pickup Covers (Aged White on Mint Green like an Aged 60s guard)
  • Comprehensive Wiring & Pickup Upgrade

More Info...

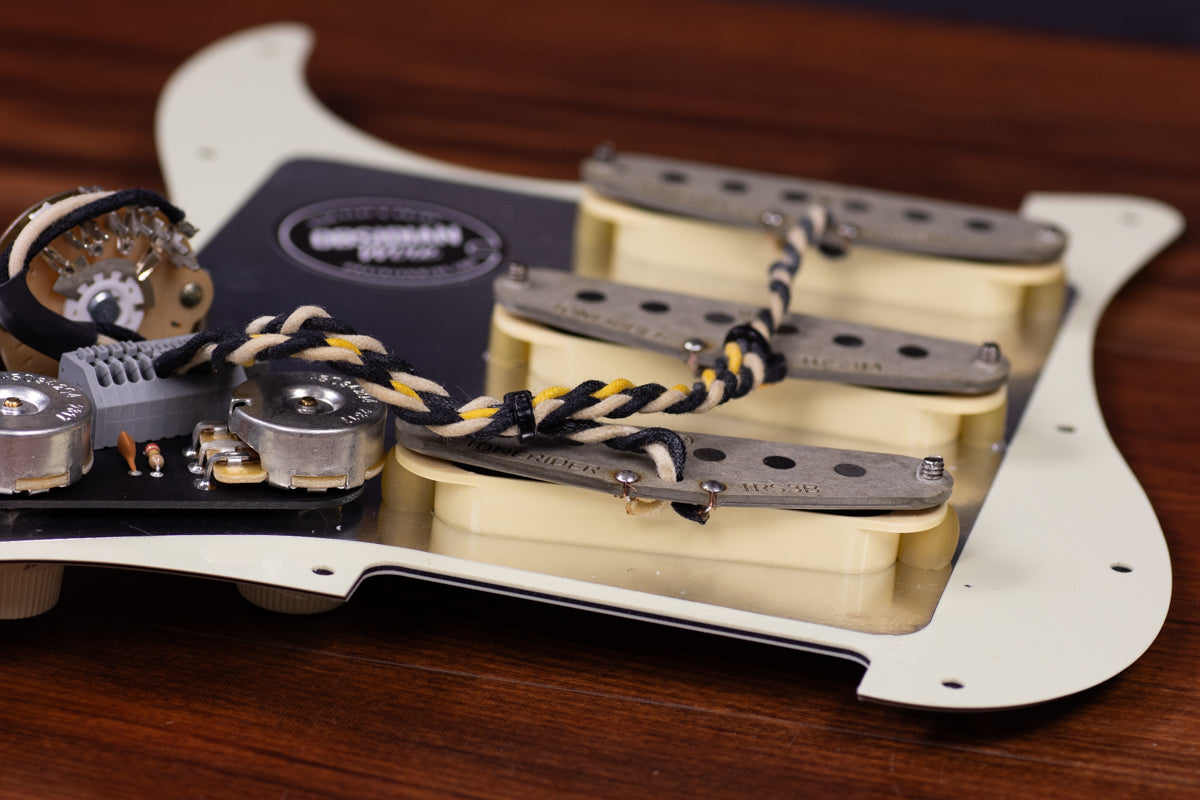

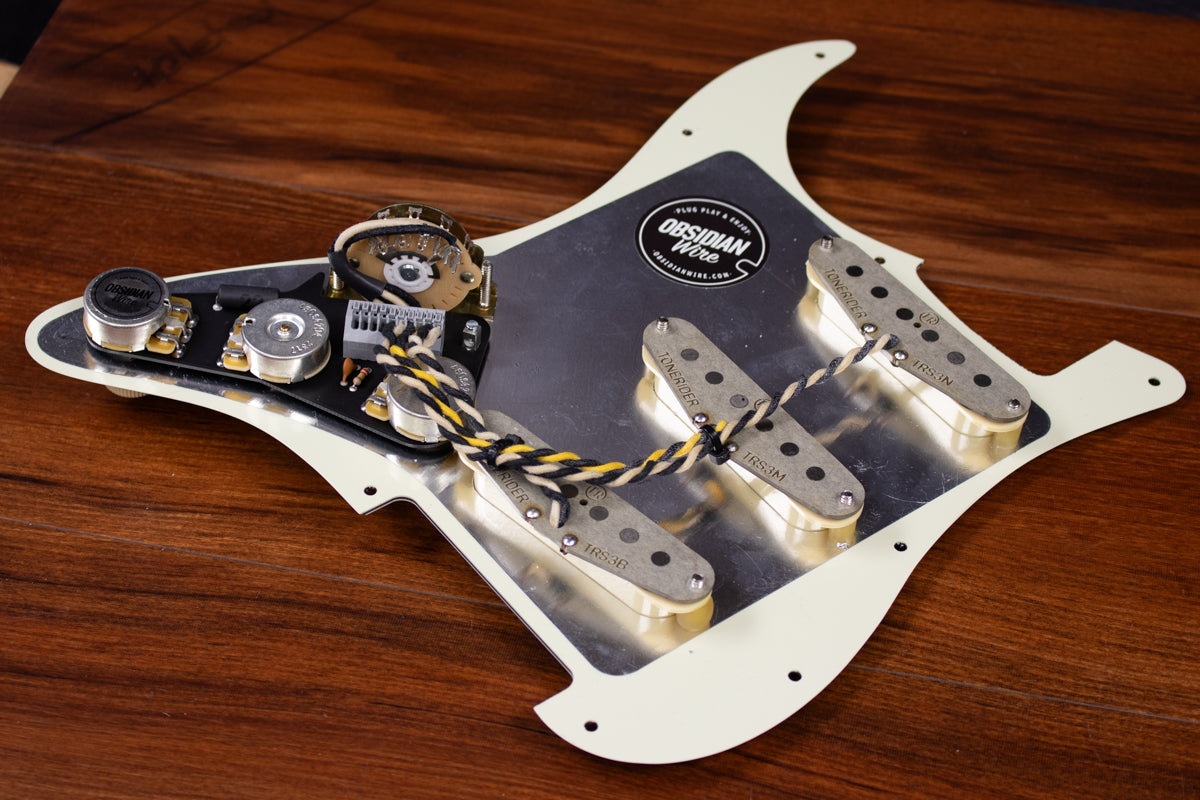

The Wiring

Strat Blender Wiring Mod - for your Stratocaster®

PLAY YOUR NECK AND BRIDGE PICKUPS TOGETHER

The Obsidian® Custom Blender for Strat® is the solder-less, Strat blender wiring harness, with a Stratocaster® blender mod built in.

With a master volume and master tone control the Custom Blender Harness packs your traditional Strat® tones into a smaller space, leaving the third tone control free.

This becomes the blender control, adding the ability to blend the neck and bridge pickups in together. This is amazing for adding a range of musical mids to your lead tone (like the bell like effects David Gilmour gets in his signature Strat) or for adding some twang to your rhythm, just like you find in the middle position on a Tele®. When you need a complete wall of sound, you can even mix all three pickups together by flicking the five way switch to position 2 or 4

CRYSTAL CLEAR TONE

Retain clarity at lower volumes. To make your tone crystal clear at lower volumes we include an Obsidian® Custom spec treble bleed mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

SMOOTH CONTROL

An even tone and volume control taper all the way from zero to ten. Obsidian® tone and volume controls incorporate carefully selected and custom-built components, as well as our own clever mods to smooth out the taper of your tone and volume controls, so you get a more even roll off all the way from zero to 10.

BLENDER MOD CONTROLS

 Switch Positions Blender Control ON (Position 1)

1: Bridge + Neck
2: Bridge & Middle + Neck
3: Middle
4: Neck & Middle + Bridge
5: Neck + Bridge

When it is time to ease back to your traditional switch positions, simply roll the blender knob off, and it will remove itself completely from the circuit.

Switch Positions Blender Control OFF (Position 10):

1: Bridge Pickup
2: Bridge & Middle Pickup
3: Middle Pickup
4: Neck & Middle Pickup
5: Neck Pickup

Control Layout

Switch: 5 - Way
Control 1: Master Volume
Control 2: Master Tone (All three pickups)
Control 3: Blender Control (Adds Neck or Bridge)

More Info

The Pickups

Stadard: ToneRider® CLASSIC BLUES

Medium Wound Hot Sixties Strat® Tones

The Classic Blues set nails the hotter 60’s Strat tones, whilst also offering the benefits of a calibrated wind for more even volume balance across all five positions.

Neck 6.3k / Mid 6.4k / Bridge 7.0k

More Info

Premium: ObsidianWire Custom Shop 'FIVE SIXTIES'

A medium output Strat® pickup set for clear chime to crunch

The ObsidianWire™ 'FIVE SIXTIES' set combines traditional Alnico V magnets with a hotter wind, for medium output, well balanced pickups. Excellent for a range of genres from pop to blues to rock.

Hand wound to order, using a scatter wind process for enhanced dynamics and true Alnico V magnets for classic Stratocaster punch. Completed with vintage style fiber bobbin, and premium wax potted cloth wire

Neck 5.9k / Mid 6.3k / Bridge 7.1k

More Info

The Look

Choose your favorite pickguard and knob combo.

Need inspiration?

Check out some of our favorite combos Here

The Install

Solderless Loaded Pickguard Install

Solderless Install

All Obsidian® loaded pickguards allow for a quick and easy solderless install using our own solderless Pro-Wired™ Electronics

Fitting

Loaded Pickguards (for Strat)

Obsidian® loaded pickguards for Stratocaster® are made to fit modern Fender Strat® bodies with 11 hole pickguards perfectly. Other bodies including Squier, import and after market type guitars may need adjustments to routing, or screw hole placement.

  • Mounting Hole Pattern: Modern Fender 11 hole
  • Control Cavity Routing: Fits genuine Fender Stratocaster
    Other guitars may need adjustment
  • Cavity depth: Minimum 34mm (1.26”)
    7-Way wiring always require full depth cavity around tone controls
  • Pickup Cavity Routing: Check pickup compatibility before ordering. Humbucker loaded pickguards require full size humbucker routing.

Control Plates (for Tele)

Obsidian® loaded control plates for Telecaster® are made to fit modern Fender Tele® bodies perfectly. Other bodies including Squier, import and after market type guitars may need adjustments to routing, or screw hole placement.

  • Mounting Hole Spacing: 150mm from center to center
  • Control Cavity Routing: Fits genuine Fender Telecaster
    Other guitars may need adjustment
  • Cavity depth: Minimum 34mm (1.26”)
    7-Way wiring always require full depth cavity around tone controls
  • Pickups: ObsidianWire Pro-Wired Electronics are generally made for standard two wire pickups.

    For different wire types select the Custom Universal harness. the Custom 4-Way harness requires a three wire neck pickup, or a solder join to add a new wire.

Control Plates (for Jazz Bass)

Obsidian® loaded control plates for Jazz Bass® are made to fit modern Fender Jazz Bass® bodies perfectly. Other bodies including Squier, import and after market type guitars may need adjustments to routing, or screw hole placement.

  • Control Cavity Routing: Fits genuine Fender Jazz Bass
    Other guitars may need adjustment - Minimum // width 24mm - length 128mm - depth 30mm
  • Pickups: Electronics are made for standard two wire pickups. Other pickups may require modification or soldering.

The Shipping

ObsidianWire Custom Shop Item:

This item is part of our Custom Shop range, built to order, one at a time in Christchurch New Zealand.

Build Time: 5 - 10 Business Days

We aim to build all custom shop orders within 5 - 10 business days (excludes weekends and public holiday). If we expect any delays we will let you know as soon as possible.

Shipping: Ships direct from Christchurch, New Zealand

All custom shop items ship direct from Christchurch, New Zealand. Please allow extra time for International shipping. Check for additional info on our shipping policies below
