ObsidianWire®

ST Custom HSS G2

Custom HSS / HSH for Strat® Gen2

Regular price
£111.00 GBP
Regular price
Sale price
£111.00 GBP

Super Easy, Solder-less Install
Key Features:

  • For HSS & HSH Strat® (Switchable Modes)
  • Intelligent Switching
  • 500k for Humbucker Clarity
  • 250k for Single Coil Warmth
  • '7-Way' Switching (Gilmour Mod) Upgrade Option
  • Fits Fender® HSS & HSH Strat®
  • Fits Squier® HSS & HSH Strat® with Adjustments


Add 7 Way Switch?
  • Hurry, only 16 items left in stock!

FAST SHIPPING

5 YEAR WARRANTY

ObsidianWire solderless install logo

Super Easy, Solder-less Install
All Obsidian® Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.



Premium HSS Strat Wiring Harness - Now for HSH Stratocaster® too

Our all new 'Gen2' HSS Strat wiring harness incorporates intelligent switching to give you the full clarity of your humbuckers AND tame your single coils, more useable tone and volume controls, greater clarity and an on board 'Mode' switch to allow you to switch between HSS & HSH modes. For ultimate versatility, we also offer you a 7-way switch upgrade option.

INTELLIGENT SWITCHING

Optimized for humbuckers & single coils. When building an HSH or HSS Stratocaster, there is a toss-up between choosing 500k controls to retain the life of a humbucker, or 250k controls to balance brighter single coils.

We use Obsidian® Intelligent Switching to give you the absolute best of both your humbuckers and single coils with a wiring harness that will automatically switch between the two.

AUTO SPLIT

A balanced humbucker & single coil combo. Achieving the right balance between your humbuckers and single coils is an important part of hearing the full dynamics of both pickups together. With Obsidian® auto split, your humbucker automatically splits into singlecoil mode when matched with your other singlecoils on the selector switch.
- Requires split coil compatible humbuckers

CRYSTAL CLEAR TONE

Retain clarity at lower volumes. To make your tone crystal clear at lower volumes we include an Obsidian® Custom spec treble bleed mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

7-WAY SWITCH // GILMOUR MOD - UPGRADE OPTION

The sweetest bell like Strat® tone. The Obsidian® 7-Way Switch allows you to play your neck and bridge pickups together for the sweetest bell like tones, or even all three pickups together. The switch is built in to your tone control by use of a push/pull pot, so no extra mods are required to your guitar.

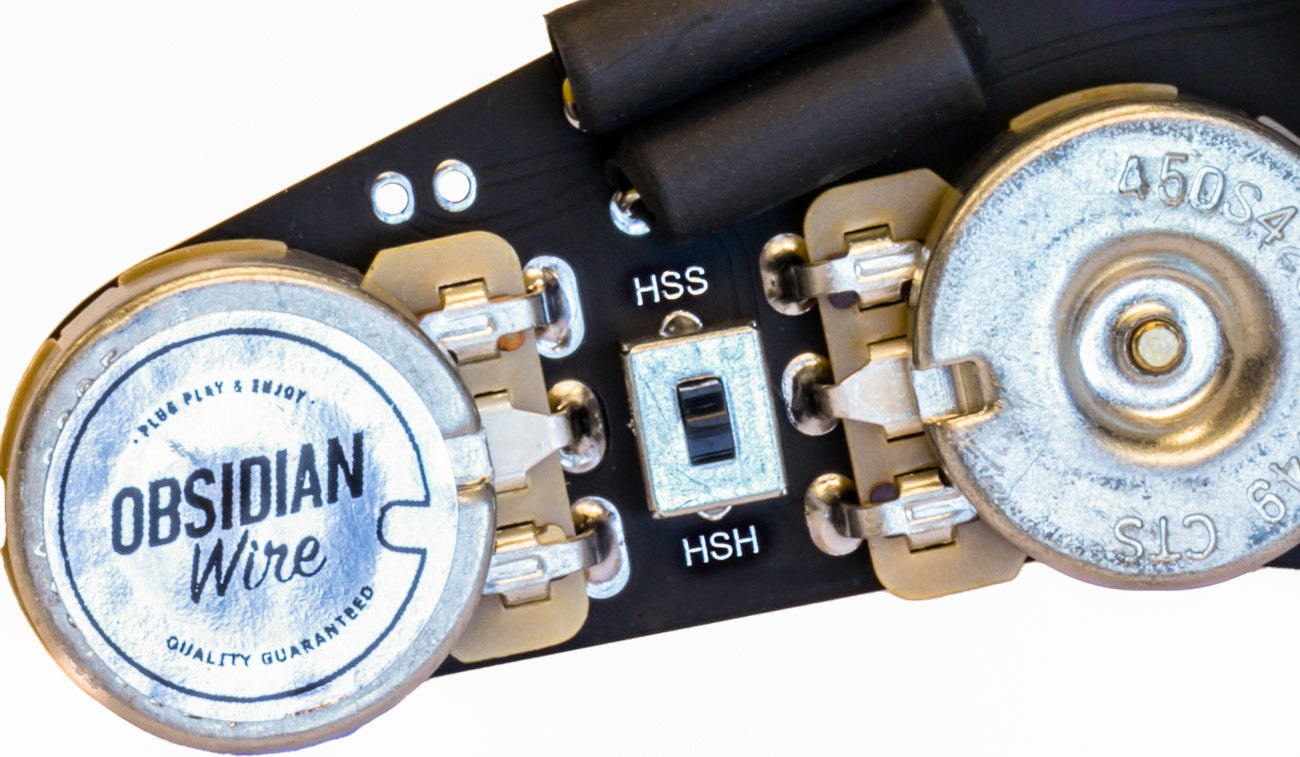

CONTROL LAYOUT - INCLUDES 'MODE' SWITCH

HSS Mode: For Humbucker Bridge Pickup + Two Single Coils

5: Neck (250k)
4: Middle + Neck (250k)
3: Middle (250k)
2: Bridge humbucker in split mode + middle (250k)
1: Bridge humbucker in full mode (500k)

* Diagram includes options Gilmour Mod // Neck pickup 'ON' switch

Wiring layout for ObsidianWire custom HSS (Including Gilmour mod Push Pull

HSH Mode: For Humbucker Bridge & Neck Pickups + Middle Single Coil

5: Neck (500k)
4: Middle + Neck in split mode (250k)
3: Middle (250k)
2: Bridge in split mode + Middle (250k)
1: Bridge (500k)

* Diagram includes options Gilmour Mod // Neck pickup 'ON' switch

wiring layout for ObsidianWire custom HSH wiring including the optional Gilmour mod

Tone Controls

Control 1: Master Volume (auto splits 250 for Single coils & 500k for Humbucker)
Control 2: Tone Control 1 (Neck & Middle) 250k No Load Pot & 0.022uf Capacitor
Control 3: Tone Control 2 (Bridge) 500k Pot & 0.022uf Capacitor

Custom HSS / HSH for Strat® Gen2
Custom HSS / HSH for Strat® Gen2
Custom HSS / HSH for Strat® Gen2
Custom HSS / HSH for Strat® Gen2
Custom HSS / HSH for Strat® Gen2
Custom HSS / HSH for Strat® Gen2
Custom HSS / HSH for Strat® Gen2
Custom HSS / HSH for Strat® Gen2

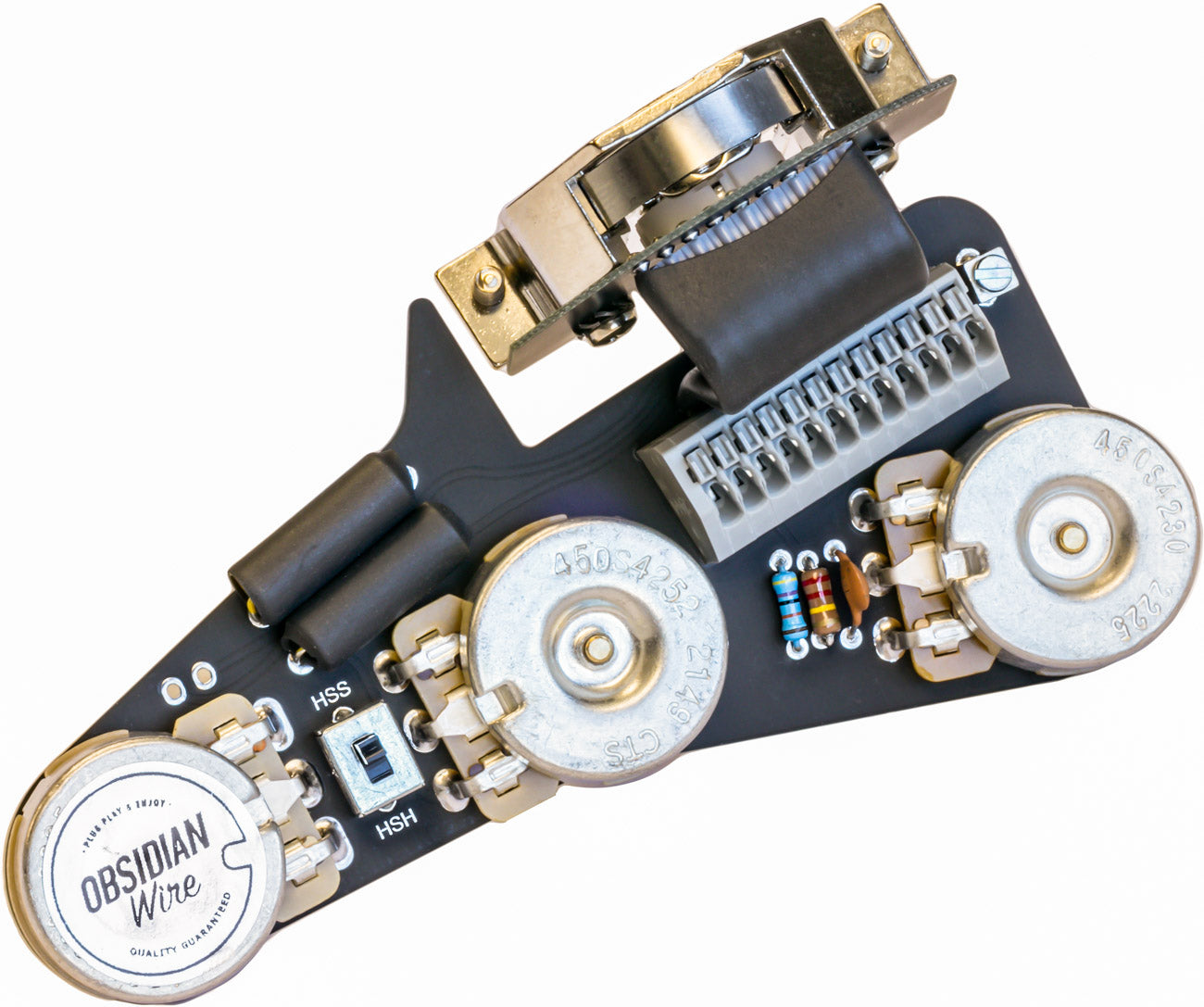

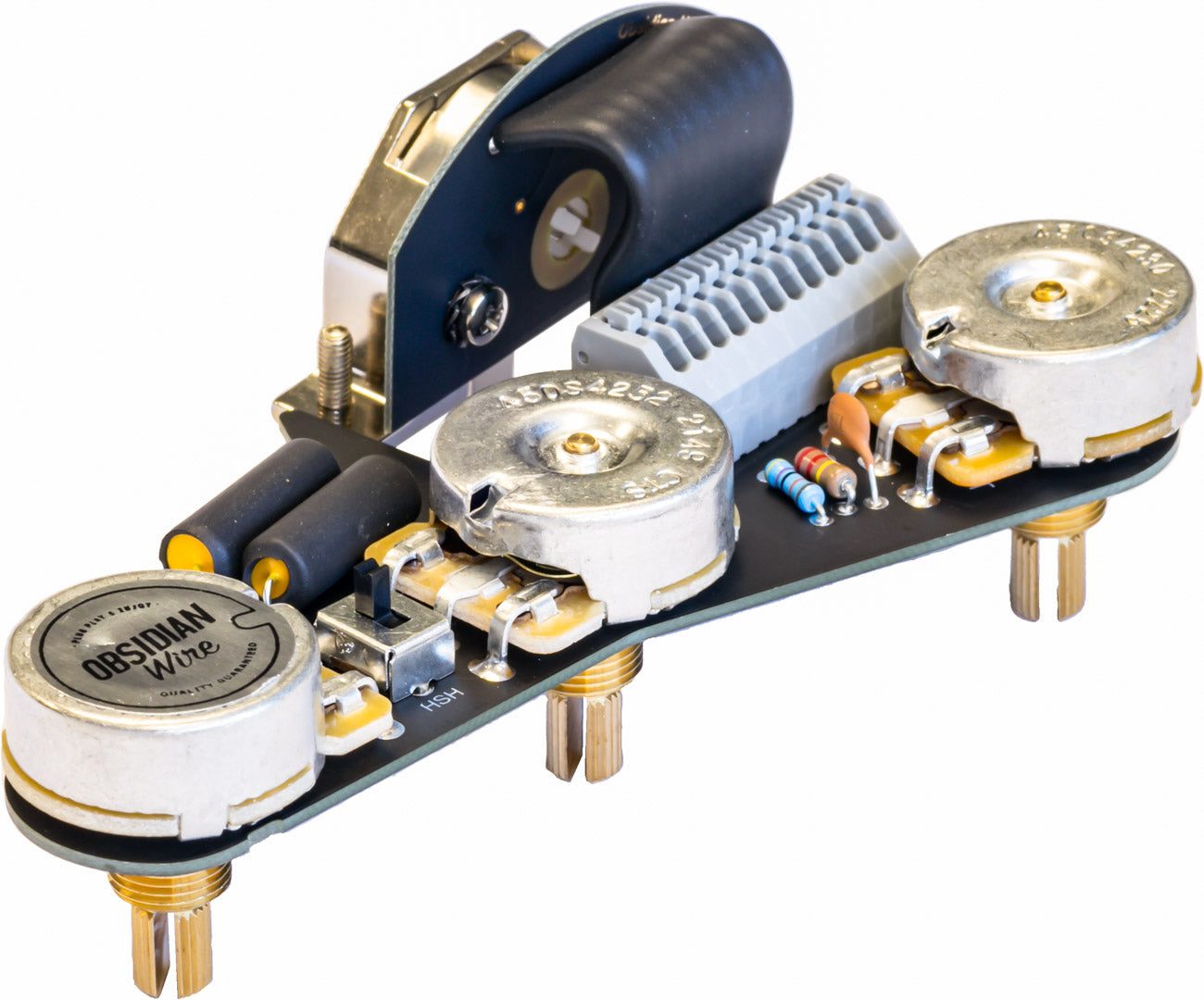

Custom HSS & HSH Strat® Wiring Harness

The Custom HSS / HSH for Strat® Gen2

  • For HSS & HSH Strat® (Switchable Modes)
  • Intelligent Switching
  • 500k for Humbucker Clarity
  • 250k for Single Coil Warmth
  • '7-Way' Switching (Gilmour Mod) Upgrade Option
  • Fits Fender® HSS & HSH Strat®
  • Fits Squier® HSS & HSH Strat® with Adjustments

Details

Description

ObsidianWire solderless install logo

Super Easy, Solder-less Install
All Obsidian® Pro-Wired Electronics are super easy to install, and allow for solder-less pickup changes with Obsidian® Plug, Play & Enjoy connectors.



Premium HSS Strat Wiring Harness - Now for HSH Stratocaster® too

Our all new 'Gen2' HSS Strat wiring harness incorporates intelligent switching to give you the full clarity of your humbuckers AND tame your single coils, more useable tone and volume controls, greater clarity and an on board 'Mode' switch to allow you to switch between HSS & HSH modes. For ultimate versatility, we also offer you a 7-way switch upgrade option.

INTELLIGENT SWITCHING

Optimized for humbuckers & single coils. When building an HSH or HSS Stratocaster, there is a toss-up between choosing 500k controls to retain the life of a humbucker, or 250k controls to balance brighter single coils.

We use Obsidian® Intelligent Switching to give you the absolute best of both your humbuckers and single coils with a wiring harness that will automatically switch between the two.

AUTO SPLIT

A balanced humbucker & single coil combo. Achieving the right balance between your humbuckers and single coils is an important part of hearing the full dynamics of both pickups together. With Obsidian® auto split, your humbucker automatically splits into singlecoil mode when matched with your other singlecoils on the selector switch.
- Requires split coil compatible humbuckers

CRYSTAL CLEAR TONE

Retain clarity at lower volumes. To make your tone crystal clear at lower volumes we include an Obsidian® Custom spec treble bleed mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.

7-WAY SWITCH // GILMOUR MOD - UPGRADE OPTION

The sweetest bell like Strat® tone. The Obsidian® 7-Way Switch allows you to play your neck and bridge pickups together for the sweetest bell like tones, or even all three pickups together. The switch is built in to your tone control by use of a push/pull pot, so no extra mods are required to your guitar.

CONTROL LAYOUT - INCLUDES 'MODE' SWITCH

HSS Mode: For Humbucker Bridge Pickup + Two Single Coils

5: Neck (250k)
4: Middle + Neck (250k)
3: Middle (250k)
2: Bridge humbucker in split mode + middle (250k)
1: Bridge humbucker in full mode (500k)

* Diagram includes options Gilmour Mod // Neck pickup 'ON' switch

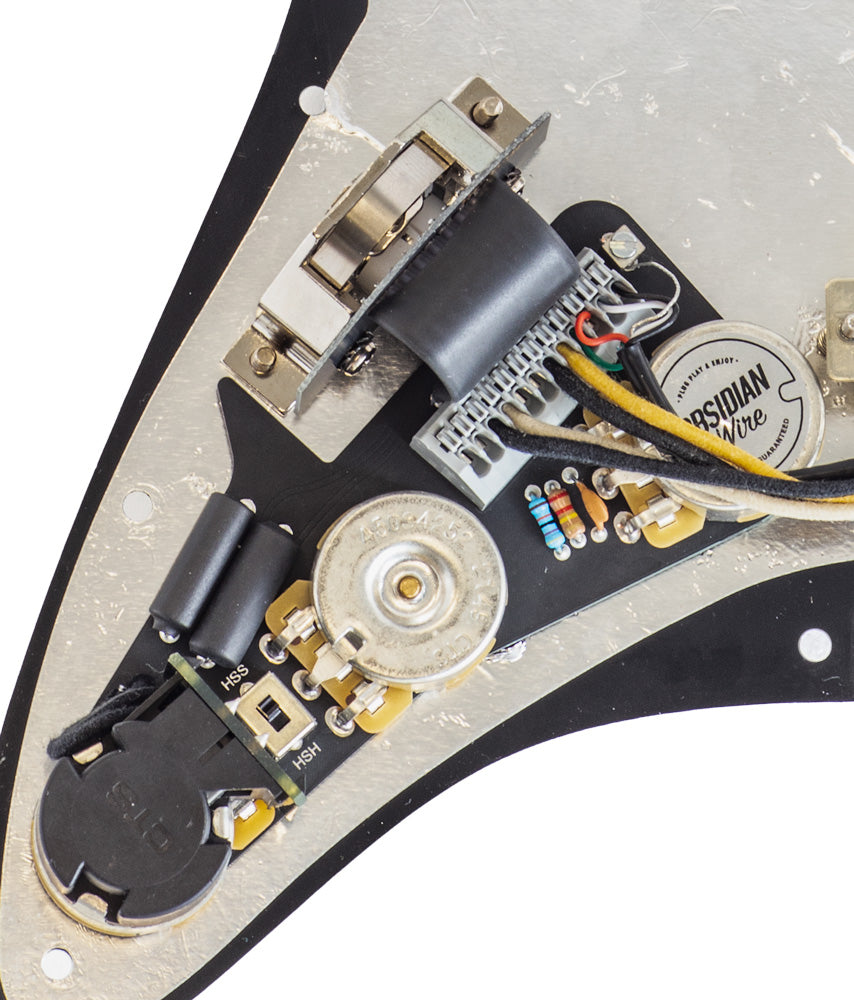

Wiring layout for ObsidianWire custom HSS (Including Gilmour mod Push Pull

HSH Mode: For Humbucker Bridge & Neck Pickups + Middle Single Coil

5: Neck (500k)
4: Middle + Neck in split mode (250k)
3: Middle (250k)
2: Bridge in split mode + Middle (250k)
1: Bridge (500k)

* Diagram includes options Gilmour Mod // Neck pickup 'ON' switch

wiring layout for ObsidianWire custom HSH wiring including the optional Gilmour mod

Tone Controls

Control 1: Master Volume (auto splits 250 for Single coils & 500k for Humbucker)
Control 2: Tone Control 1 (Neck & Middle) 250k No Load Pot & 0.022uf Capacitor
Control 3: Tone Control 2 (Bridge) 500k Pot & 0.022uf Capacitor

Specs

BUILT IN HOUSE WITH

  • Potentiometers: Obsidian® Custom CTS® Pots (+/-10%) Split Shaft / 24 Spline
  • Capacitors: (150 Series Polyester Film 0.022uf) (+/-5%)
  • Switch: Obsidian® Schaller® Propriety Switch (Requires Metric Tip)
  • Jack: Pro-Wired Switchcraft® J11 Mono // OR Pure Tone® Mono Multi-Contact 1/4 in

Compatibility

MADE TO FIT:

  • Fits: Fender® HSS & HSH Stratocaster® - Direct Fit // Right Hand Guitar Only
  • Fits: Squier® HSS & HSH Stratocaster® - Widen Control holes to 10mm & replace knobs
  • Always Check: '7-Way Upgrade' Requires Minimum Cavity Depth around Push Pull Pot 29.2mm / 1.15"
  • Knobs: Requires US spec 24 spline knobs
  • Pickups: Built for HSS or HSH Loaded Strat® (Humbucker bridge pickup + two single coils or Humbucker Neck & Bridge + middle single coil)
  • Coil splitting: Requires compatible four conductor humbucker(s)

DOES NOT FIT:

  • Does NOT fit: Left Handed Guitars // Any guitar not described above

Install

For install help and other resources please go to our Info Hub.
