Upgrade Your Guitar Without Soldering

Solderless guitar wiring makes upgrading your guitar’s electronics easier, cleaner and more accessible.

Instead of building a wiring circuit from individual components and soldering every connection yourself, a professionally assembled solderless wiring harness arrives ready to install. Connect your pickups, install the controls and jack, and get back to playing.

ObsidianWire combines solderless installation with professionally designed circuits, premium components and guitar-specific wiring solutions for Stratocaster, Telecaster, Les Paul and other popular guitars.

Shop Solderless Guitar Wiring →

In this guide

  • What Is Solderless Guitar Wiring?
  • Why Use Solderless Guitar Wiring
  • Solderless Stratocaster Wiring
  • HSS and HSH Strat Wiring
  • Solderless Telecaster Wiring
  • Solderless Les Paul Wiring
  • Can You Change Guitar Pickups Without Soldering?
  • Solderless vs Traditional Wiring
  • Is Solderless Guitar Wiring Reliable?
  • What Guitars Can Use Solderless Wiring?
  • What Should You Check Before Buying?
  • FAQs
A fully loaded HH Stratocaster pickguard using an ObsidianWire Solder-less wiring harness

What is solderless guitar wiring?

Traditional guitar wiring relies on soldered connections between pickups, pots, switches, capacitors and the output jack.

Solderless guitar wiring uses purpose-designed connectors instead, allowing compatible pickup and ground wires to be connected directly to a professionally assembled harness.

The result is a guitar wiring system that can be installed without soldering and, importantly, allows compatible pickups to be changed without repeatedly rebuilding the wiring inside your guitar.

ObsidianWire’s Pro-Wired™ electronics use its Plug, Play & Enjoy™ connectors to make pickup changes and installation easier while retaining professionally assembled electronics. (ObsidianWire)

Solderless doesn’t mean basic

A solderless harness can contain sophisticated electronics and advanced switching just like a traditional soldered circuit.

Depending on the model, an ObsidianWire harness can include features such as:

  • Intelligent pickup switching
  • Coil splitting
  • Series/parallel switching
  • Phase switching
  • Blender controls
  • Treble bleed circuits
  • Additional pickup combinations
  • Custom control tapers
  • Premium CTS® potentiometers
  • PureTone® or Switchcraft® jacks
  • Oak® and Schaller® switches

The difference is primarily how the connections are made, not how sophisticated the circuit can be.

Why use solderless guitar wiring?

Change pickups without soldering

One of the biggest advantages of solderless wiring is making future pickup changes easier.

With traditional wiring, changing a pickup normally involves heating solder joints, removing wires and reconnecting everything when the new pickup is installed.

With a compatible solderless harness, the pickup can instead be disconnected from the harness and replaced without repeatedly soldering directly to the guitar’s controls.

This makes solderless wiring particularly useful for guitarists who like to experiment with different pickups.


Install your wiring upgrade at home

A professionally assembled wiring harness removes much of the complexity of building a guitar circuit from scratch.

You don’t need to design the circuit, select every component or solder every connection yourself.

You still need to follow the installation instructions carefully and confirm that the harness is compatible with your guitar, pickups and hardware.

ObsidianWire provides installation guides, wiring diagrams and fitment information for its products. (ObsidianWire)

[View ObsidianWire Installation Guides →]


Get professionally assembled electronics

A major advantage of a pre-wired harness is that the circuit is assembled before it reaches your guitar.

ObsidianWire uses custom-specified CTS® potentiometers, premium switches, PureTone® and Switchcraft® jacks and polyester film capacitors across its range. (ObsidianWire)

The result is a clean, consistent installation without having to build the entire circuit yourself.

Shop Solderless Guitar Wiring →

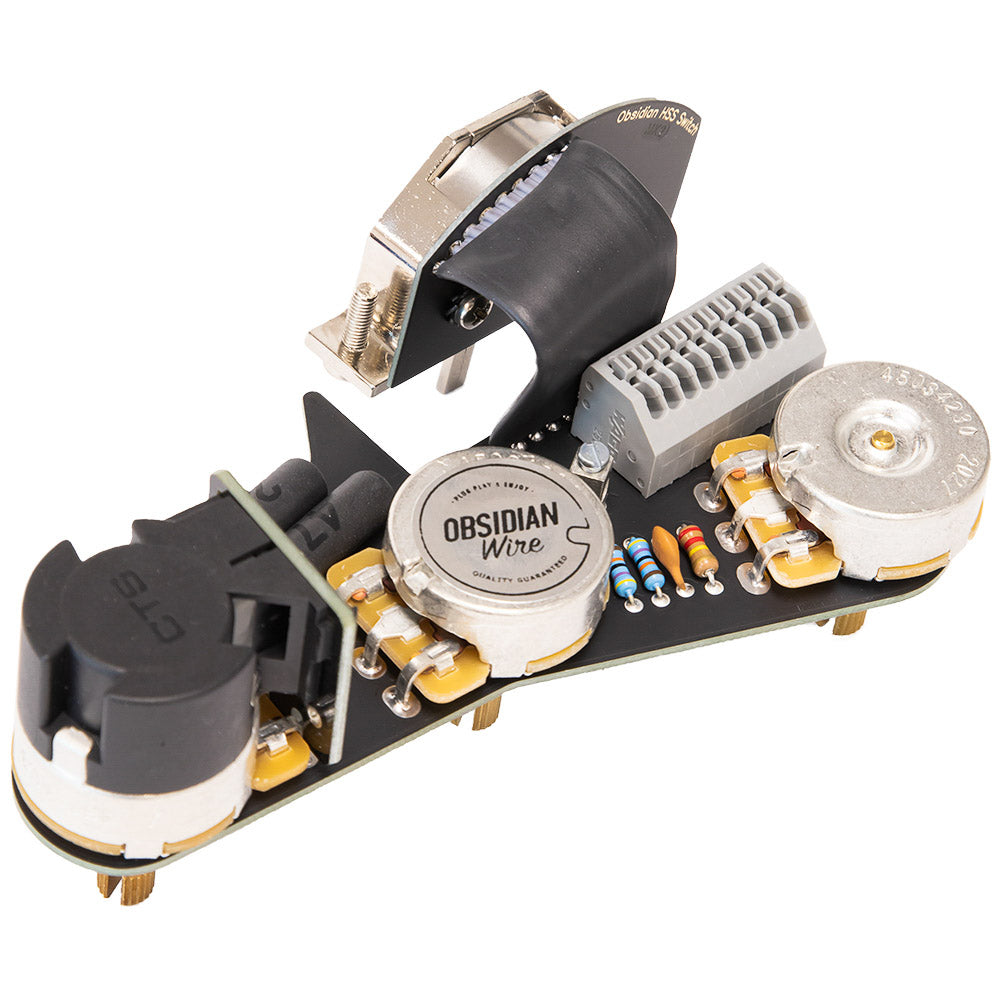

A Stratocaster solderless wiring harness with black wiring, silver metal potentiometers, and a white ObidianWire sticker, isolated on a white background.

Solderless Stratocaster Wiring

Stratocasters offer enormous potential for wiring modifications.

A conventional SSS Strat can be upgraded with alternative switching, blender controls or additional pickup combinations, while HSS and HSH configurations can introduce even more possibilities.

ObsidianWire currently offers a range of solderless Strat wiring solutions, including Vintage, HSS/HSH, 7-Way, Blender and HH configurations. (ObsidianWire)

HSS and HSH Strat wiring

HSS guitars create an interesting wiring challenge.

Humbuckers typically benefit from 500k controls, while many Strat single coils are traditionally paired with 250k controls.

ObsidianWire’s Custom HSS / HSH Gen2 uses intelligent switching to provide 500k operation for the humbucker and 250k operation for the single coils. It also includes automatic coil splitting and an optional 7-way/Gilmour modification. (ObsidianWire)

Shop Solderless Strat Wiring Learn More About Solderless Strat Wiring

Solderless Telecaster Wiring

Telecaster wiring may look simple, but there are several useful ways to modify it.

A standard 3-way circuit can be replaced with a 4-way configuration to add a series pickup combination, or with a 7-way arrangement for additional pickup options.

ObsidianWire offers solderless Telecaster harnesses including:

  • Vintage 3-Way
  • Custom 4-Way
  • Universal Tele
  • Nashville 7-Way configurations

The Custom 4-Way for Tele adds a high-output series position while retaining the familiar Telecaster pickup combinations. (ObsidianWire)

Shop Solderless Telecaster Wiring
A black ObsidianWire Solderless Les Paul MKII wiring harness with silver knobs and connectors, designed for vintage and modern wiring configurations.

Solderless Les Paul Wiring

Les Paul guitars are another excellent application for solderless wiring.

Traditional Les Paul wiring can be upgraded with different volume and tone control configurations, 50s wiring, coil splitting and additional switching options.

ObsidianWire’s MKII for Les Paul provides selectable Vintage 50s and Modern 60s wiring. (ObsidianWire)

For players looking for considerably more flexibility, The Ultimate Wiring for Les Paul // JP Mod adds:

  • Selectable 50s / 60s Plus wiring
  • Dual coil splitting
  • Series switching
  • Phase switching
  • Solderless installation

The system is designed around four-conductor pickups and provides a broad range of sounds without requiring additional body modifications. (ObsidianWire)

Shop Solderless Les Paul Wiring

Can you change guitar pickups without soldering?

Yes—provided your wiring harness and pickup are compatible.

This is one of the main advantages of solderless guitar wiring.

Instead of soldering the pickup directly to the controls, the pickup wires connect to a purpose-designed connector on the harness.

However, solderless does not mean universal.

Different pickup manufacturers can use different wire colours and wiring conventions, and some pickup configurations require additional conductors for features such as coil splitting.

Always check the wiring instructions for your specific pickup and harness before installation.

ObsidianWire provides pickup wiring and installation information for its products to help identify the appropriate connections. (ObsidianWire)

Is solderless guitar wiring better than traditional wiring?

Not necessarily. They are different approaches.

Traditional soldered wiring remains an excellent choice for completely custom circuits or builders who want to create their own wiring from individual components.

  • Solderless wiring has a different advantage: simplicity and repeatability.
  • For a completely custom one-off circuit, soldering may be preferable.

For a professionally designed upgrade that you can install and modify more easily, solderless wiring offers a compelling alternative.

Feature Traditional Wiring Solderless Wiring
Soldering required Yes No
Pickup changes More involved Easier
DIY installation Requires soldering skills Designed for easier installation
Professionally assembled Optional Yes
Custom circuit flexibility Very high Depends on harness
Future pickup changes Usually requires soldering Much easier

Is solderless guitar wiring reliable?

The reliability of a solderless system depends on the quality of the connectors, components and construction.

A poorly designed solderless system isn’t automatically better than traditional soldering.

That’s why the quality of the harness matters.

ObsidianWire combines solderless connectors with professionally assembled circuits and premium components, including custom CTS® pots, Oak® and Schaller® switches and PureTone® jacks. (ObsidianWire)

The connectors are designed to securely hold the pickup wires, while installation instructions specify how wires should be prepared and inserted. (ObsidianWire)

What guitars can use solderless wiring?

Solderless wiring is available for many popular guitar configurations.

ObsidianWire’s current range includes wiring for:

  • Stratocaster
  • Telecaster
  • Les Paul
  • SG
  • Jazzmaster
  • Pacifica
  • Jazz Bass
  • Precision Bass
  • Other compatible applications

The current ObsidianWire solderless collection can be filtered by guitar type, pickup count and mounting configuration. (ObsidianWire)

Shop Solderless Guitar Wiring →

What should you check before buying a solderless wiring harness?

Before ordering, check these five things.

1. Guitar model

Make sure the harness is designed to fit your guitar or that the manufacturer provides the necessary adjustments.

2. Pickup configuration

Check whether your guitar uses SSS, HSS, HSH, HH or another configuration.

3. Pickup wiring

Some features, particularly coil splitting, require four-conductor humbuckers.

4. Pot and control-hole dimensions

Different guitars can use different control-hole sizes, shaft specifications and knob types.

For example, ObsidianWire specifies particular hole sizes, knob compatibility and cavity-depth requirements for its Les Paul harnesses. (ObsidianWire)

5. Left- or right-handed configuration

Not every harness fits both orientations, so check before ordering.

Always check the individual product’s compatibility information before purchase.

Solderless Guitar Wiring FAQs

What is a solderless guitar wiring harness?

A solderless guitar wiring harness is a pre-assembled guitar electronics circuit that uses connectors rather than traditional soldered pickup connections.
Can I install solderless guitar wiring myself?

Yes. Solderless harnesses are specifically designed to make installation easier, although you still need to follow the manufacturer’s installation instructions carefully.
Can I change pickups without soldering?

Yes, when using a compatible solderless harness. The pickup can be disconnected from the harness and replaced without repeatedly soldering the pickup wires to the guitar’s controls.
Does solderless wiring change guitar tone?

The absence of solder itself isn’t a magic tone upgrade. Tone depends on the circuit, component values, pickup interaction and overall guitar electronics. A well-designed solderless harness can, however, incorporate carefully designed circuits and premium components.
Do solderless harnesses work with any pickup?

No. Compatibility depends on the pickup’s wiring, conductor configuration and the particular harness. Always check the wiring information before installation.
Can I use solderless wiring with Seymour Duncan or DiMarzio pickups?

Many aftermarket pickups can be used with solderless harnesses, but you should check the specific pickup’s wiring configuration and the harness manufacturer’s compatibility information before installation.

See Wiring Diagrams & Pickup Colour Codes
Is solderless wiring good for guitar builders?

It can be particularly useful for builders and technicians who regularly install or change pickups and want a consistent, professionally assembled electronics platform.

Find Your Solderless Guitar Wiring Upgrade

Whether you’re replacing tired electronics, changing pickups or looking for more control over your guitar’s sounds, a solderless wiring harness can make the upgrade considerably simpler.

ObsidianWire combines:

  • SOLDERLESS INSTALLATION
    Easy installation and easier compatible pickup changes.
  • PRO-GRADE COMPONENTS
    Custom-specified components and professionally assembled electronics.
  • MORE POSSIBILITIES
    From traditional replacement wiring to coil splitting, series switching, blender controls and advanced pickup combinations.

Explore the range and find the wiring system designed for your guitar.
